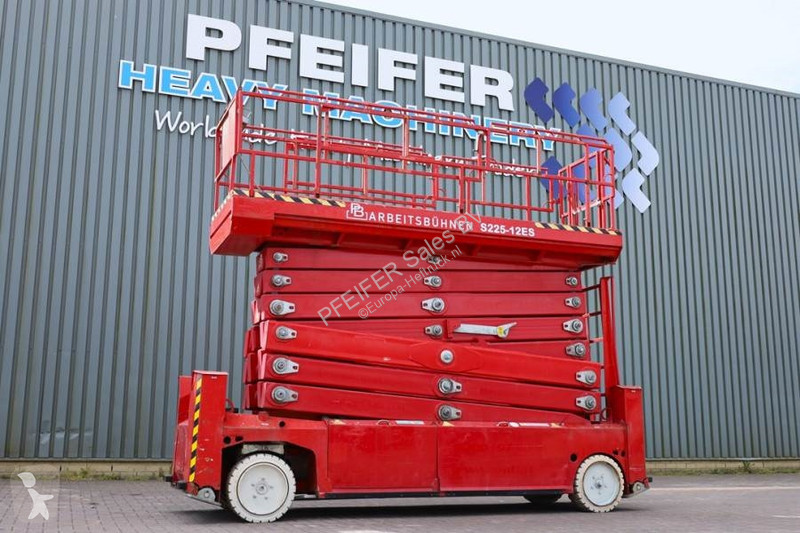

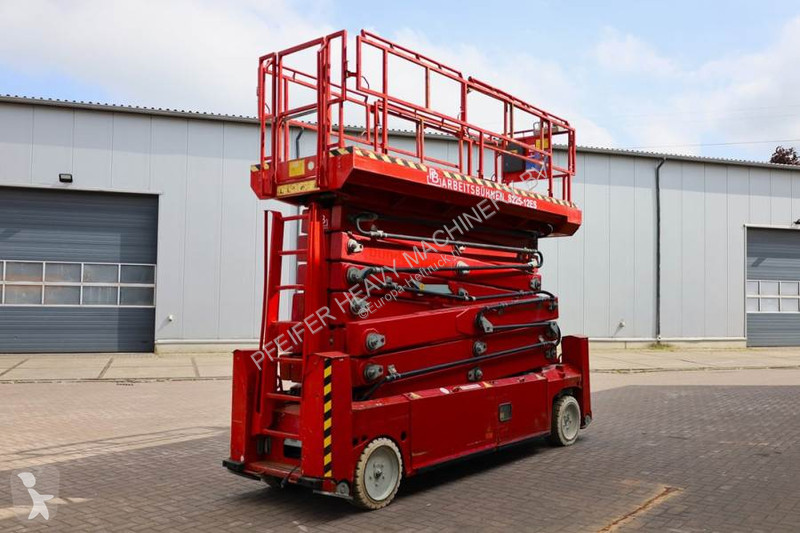

Piattaforma automotrice PB LIFT S225-12ES Electric, 22.5m Working Height, 450 usata

Front tyres / undercarriage remaining: 80
Rear tyres remaining : 80
Tyre brand: -
Transport dimensions (LxWxH): 4.52x1.22x3.57
Please contact PFEIFER GROUP (Guarda il numero, Guarda il numero, ) for more information

Zustand der Bereifung vorne: 80
Zustand der Bereifung hinten: 80
Transportabmessungen (L x B x H): 4.52x1.22x3.57
Wenden Sie sich an PFEIFER GROUP (Guarda il numero, Guarda il numero, ), um weitere Informationen zu erhalten.

Manufacturer: PB Lift
Typ: S225-12ES
Manuf. Year: 2010
Working Hours: Not Displayed
Serial nr: 12225.160

Working height: 22.5 m
Lift capacity: 450 kg
Lift capacity platform extension: 450 kg

Platform extension (scissors): 1.50 m
Gradeability: 25 %
Speed - stowed: 1.63 km/h
Speed - raised: 0.13 km/h
Drive type: Electro-hydraulic drive
Battery capacity: 640 Ah

Area of application: indoor + outdoor
People indoor: 2
People outdoor: 2

Turning radius outside: 3.65 m
Drivable at full height: Yes

Total length: 4.52 m
Total width: 1.22 m
Total height: 3.57 m
Transport height: 2.73 m
Total weight: 10.290 kg

The low weight of 10.290 kg and the possibility to minimize the height to 2.73 m by folding the rails, also facilitate an easy transport.

Via touch of the button the working platform levels thanks to the patented PB support system automatically within a few seconds in an absolute safe position

This scissor lift is also suitable for inner-city operations on common sidewalks and at tight spaces – and this with a working height of 22.50 m

CE (Declaration of Conformity)

More detailed pictures / product movie on our website.

pfeifermachinery.com

Above specifications are subject to change without prior notice and subject to errors.

Resterend profiel voorbanden: 80
Resterend profiel achterbanden: 80
Afmetingen (LxBxH) (m): 4.52x1.22x3.57
Neem voor meer informatie contact op met PFEIFER GROUP (Guarda il numero, Guarda il numero, )
